loudness_zwst

loudness_zwst(signal, fs, field_type='free')

Compute the loudness value from a time signal

This function computes the acoustic loudness according to Zwicker method for stationary signals (ISO.532-1:2017).

Parameters:

• signal (numpy.array) – Signal time values [Pa], dim (nperseg, nseg).

• fs (float) – Sampling frequency [Hz]

• field_type (str) – Type of soundfield corresponding to spec_third (“free” by default or “diffuse”).

Returns:

• N (float or array_like) – Overall loudness array in [sones], size (Ntime,).

• N_specific (array_like) – Specific loudness array [sones/bark], size (Nbark, Ntime).

• bark_axis (array_like) – Bark axis array, size (Nbark,).

Warning

The sampling frequency of the signal must be >= 48 kHz to fulfill requirements. If the provided signal doesn’t meet the requirements, it will be resampled.

See also

loudness_zwst_perseg

Loudness computation by time-segment

loudness_zwst_freq

Loudness computation from a sound spectrum

loudness_zwtv

Loudness computation for a non-stationary time signal

Notes

The total loudness \(N\) of the signal is computed as the integral of the specific loudness \(N'\) measured in sone/bark, over the Bark scale. The values of specific loudness are evaluated from third octave band levels as function of critical band rate \(z\) in Bark.

\[N=\int_{0}^{24Bark}N'(z)\textup{dz}\]

Due to normative continuity, the method is in accordance with ISO 226:1987 equal loudness contours instead of ISO 226:2003, as defined in the following standards:

• ISO 532:1975 (method B)

• DIN 45631:1991

• ISO 532-1:2017 (method 1)

References

[1]

E.Zwicker and H.Fastl. Program for calculating loudness according to din 45631 (iso 532b). Journal of the Acoustical Society of Japan, 1991. URL: https://www.jstage.jst.go.jp/article/ast1980/12/1/12_1_39/_article.

[2]

ISO.532-1:2017. Methods for calculating loudness, part 1 Zwicker Method. International Organization for Standardization, 2017. URL: https://www.iso.org/standard/63077.html.

Examples

>>> from mosqito.sq_metrics import loudness_zwst
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> f=1000
>>> fs=48000
>>> d=0.2
>>> dB=60
>>> time = np.arange(0, d, 1/fs)
>>> stimulus = 0.5 * (1 + np.sin(2 * np.pi * f * time))
>>> rms = np.sqrt(np.mean(np.power(stimulus, 2)))
>>> ampl = 0.00002 * np.power(10, dB / 20) / rms
>>> stimulus = stimulus * ampl
>>> N, N_spec, bark_axis = loudness_zwst(stimulus, fs)

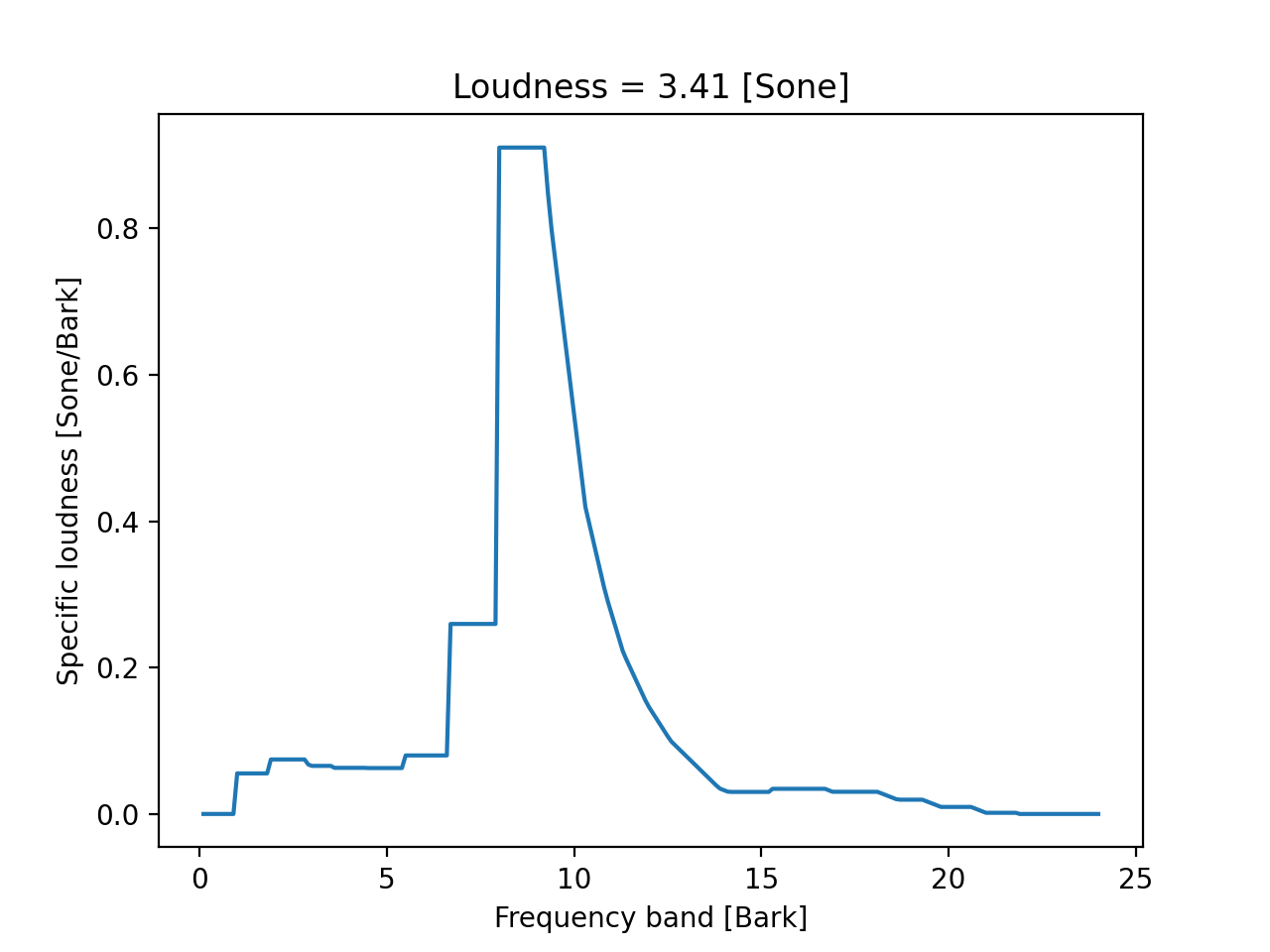

>>> plt.plot(bark_axis, N_spec)
>>> plt.xlabel("Frequency band [Bark]")
>>> plt.ylabel("Specific loudness [Sone/Bark]")
>>> plt.title("Loudness = " + f"{N:.2f}" + " [Sone]")

(Source code, png, hires.png, pdf)
