roughness_ecma

roughness_ecma(signal, fs)

Calculation of the specific and total roughness according to ECMA-418-2 (2nd Ed, 2022).

This function computes the acoustic loudness according to ECMA-418-2 (section 7) method for stationary signals. The calculation is based on the Hearing Model (HMS) used in loudness_ecma aswell.

Parameters:

• signal (numpy.array) – Signal time values [Pa]. The sampling frequency of the signal must be 48000 Hz.

• fs (int) – Sampling frequency [Hz].

Returns:

• R (float) – Overall roughness representative value [asper_HMS].

• R_time (numpy.ndarray) – Roughness over time [asper_HMS], size (Ntime,).

• R_specific (numpy.ndarray) –

  Specific roughness [asper_HMS/bark], size (Nbark, Ntime).

  Each of the 53 elements of the list corresponds to the time-dependant specific roughness for a given bark band.

• bark_axis (numpy.ndarray) – Corresponding bark axis, size (Nbark,).

• time_axis (numpy.ndarray) – Time axis, size (Ntime,).

Warning

The sampling frequency of the signal must be 48 kHz.

See also

roughness_dw

Daniel and Weber roughness computation

loudness_ecma

Loudness computation based on the hearing model of ECMA 418-2

References

[1]

ECMA.418-2:2022. Psychoacoustic metrics for ITT equipment — Part 2 (models based on human perception). European Computer Manufacturers Association, 2022. URL: https://www.ecma-international.org/wp-content/uploads/ECMA-418-2_2nd_edition_december_2022.pdf?trk=organization_guest_main-feed-card_reshare-text.

Examples

>>> from mosqito.sq_metrics import roughness_ecma
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> f=1000
>>> fs=48000
>>> d=1
>>> dB=60
>>> fmod = 70
>>> fc = 1000
>>> mdepth = 1
>>> time = np.arange(0, d, 1/fs)
>>> signal = (0.5* (1 + mdepth * (np.sin(2 * np.pi * fmod * time)))
>>>         * np.sin(2 * np.pi * fc * time)
>>>     )
>>> rms = np.sqrt(np.mean(np.power(signal, 2)))
>>> ampl = 0.00002 * np.power(10, dB / 20) / rms
>>> stimulus = signal * ampl
>>> R, R_time, R_spec, bark_axis, time_axis = roughness_ecma(stimulus, fs)

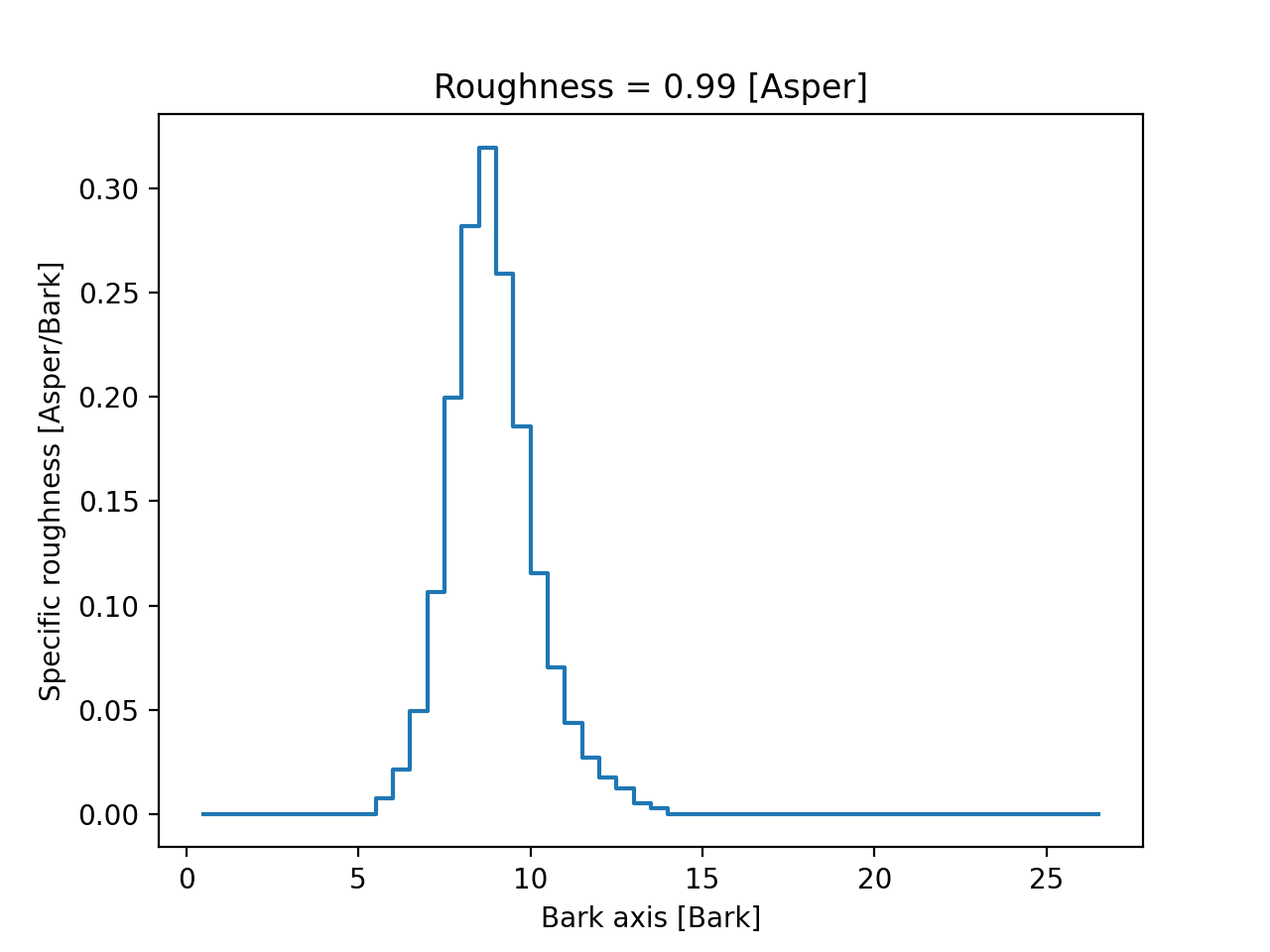

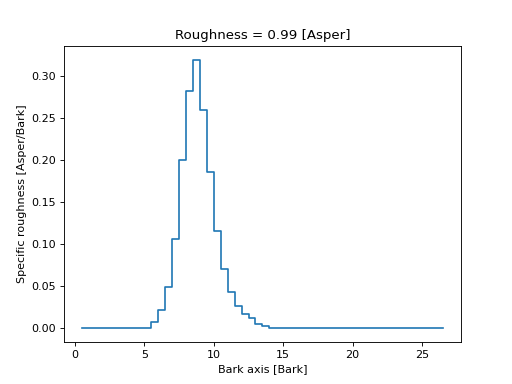

>>> plt.step(bark_axis, R_spec)
>>> plt.xlabel("Bark axis [Bark]")
>>> plt.ylabel("Specific roughness [Asper/Bark]")
>>> plt.title("Roughness = " + f"{R:.2f}" + " [Asper]")

(Source code, png, hires.png, pdf)
